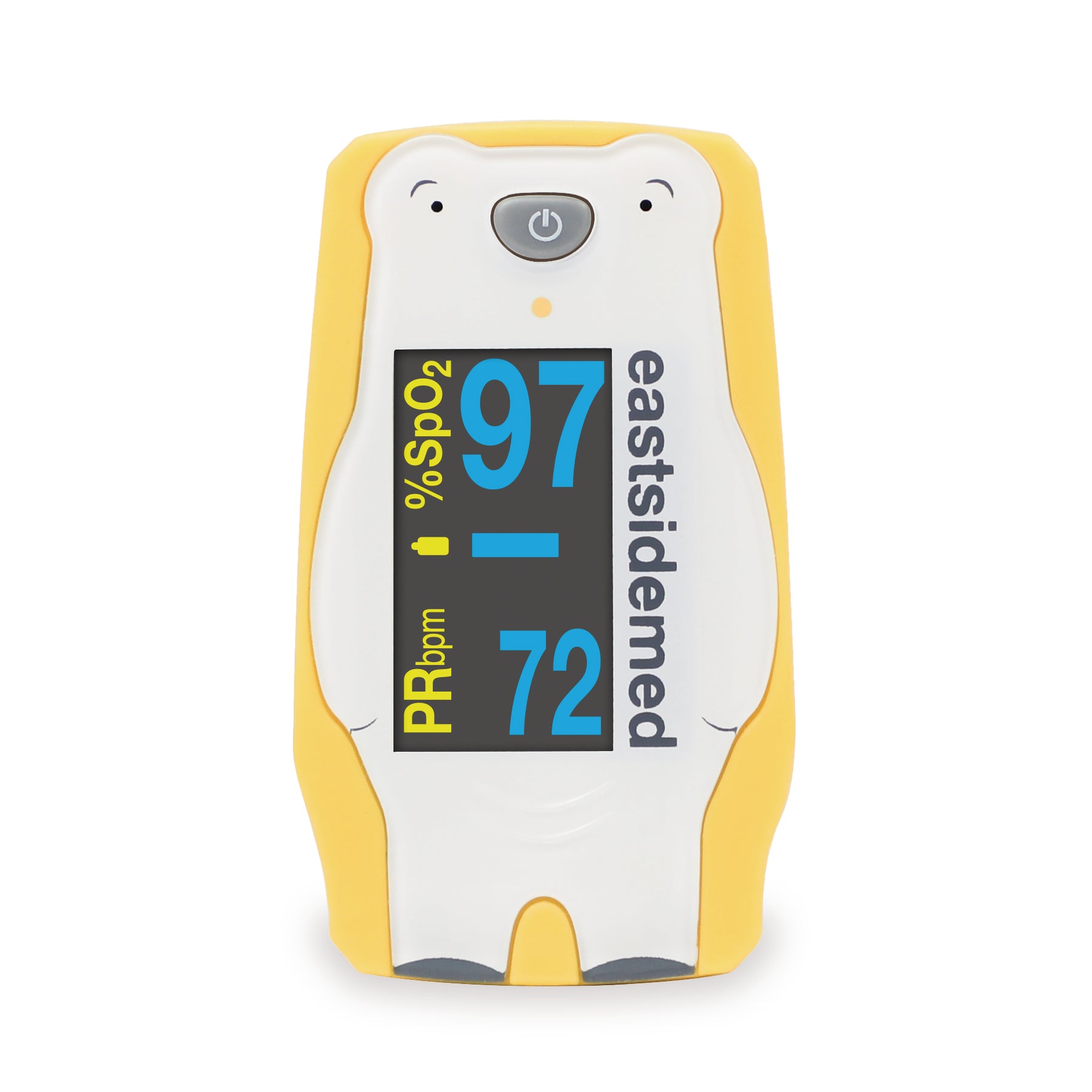

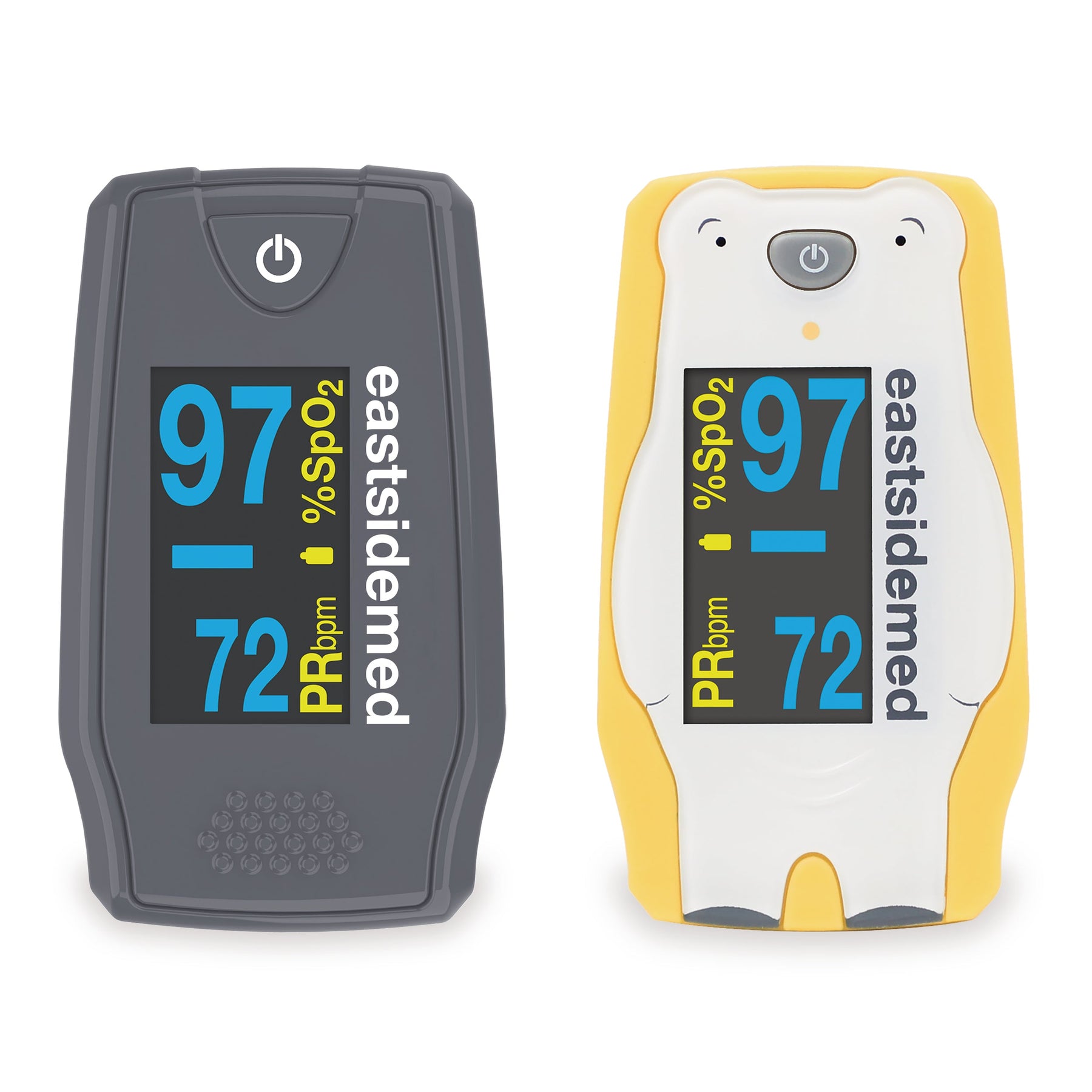

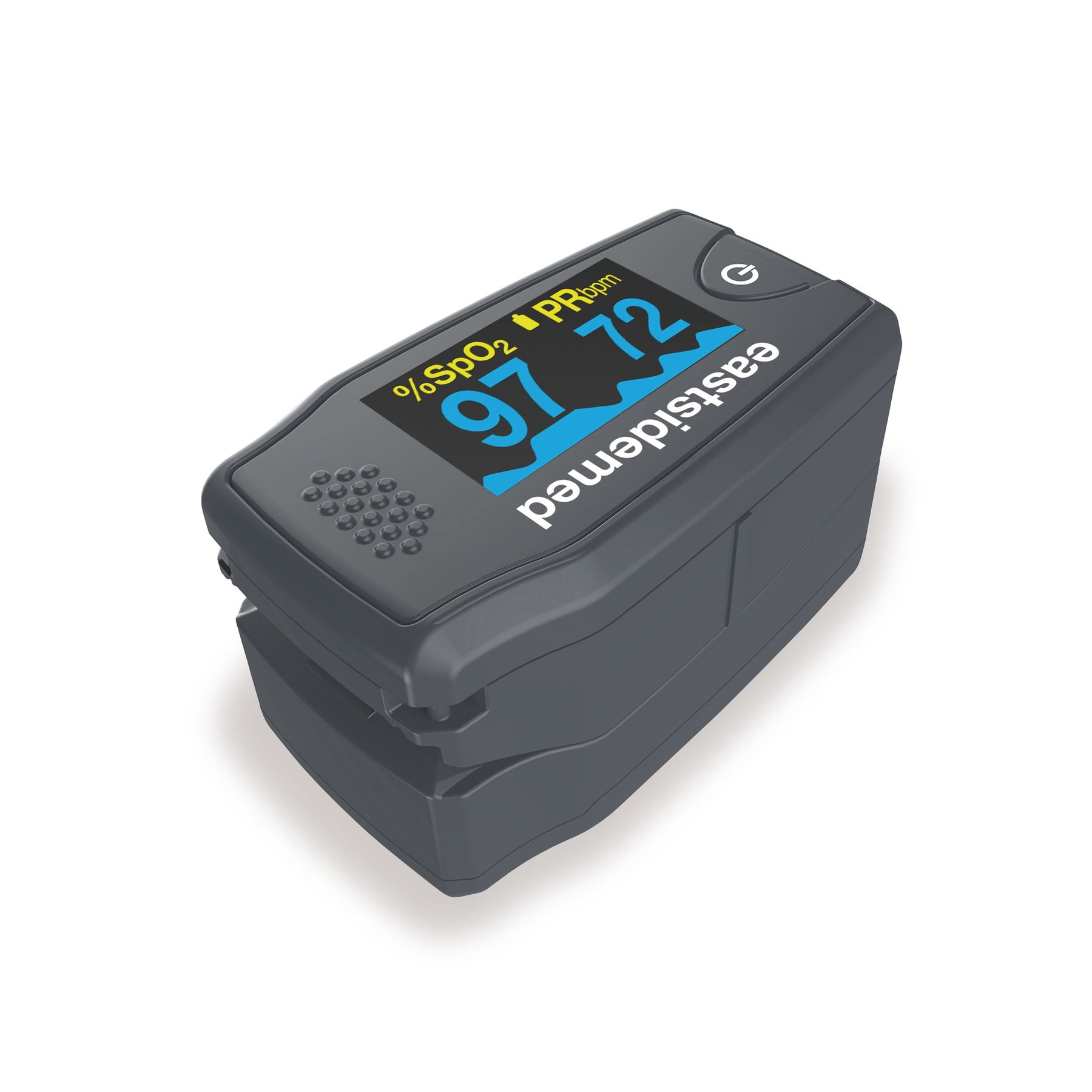

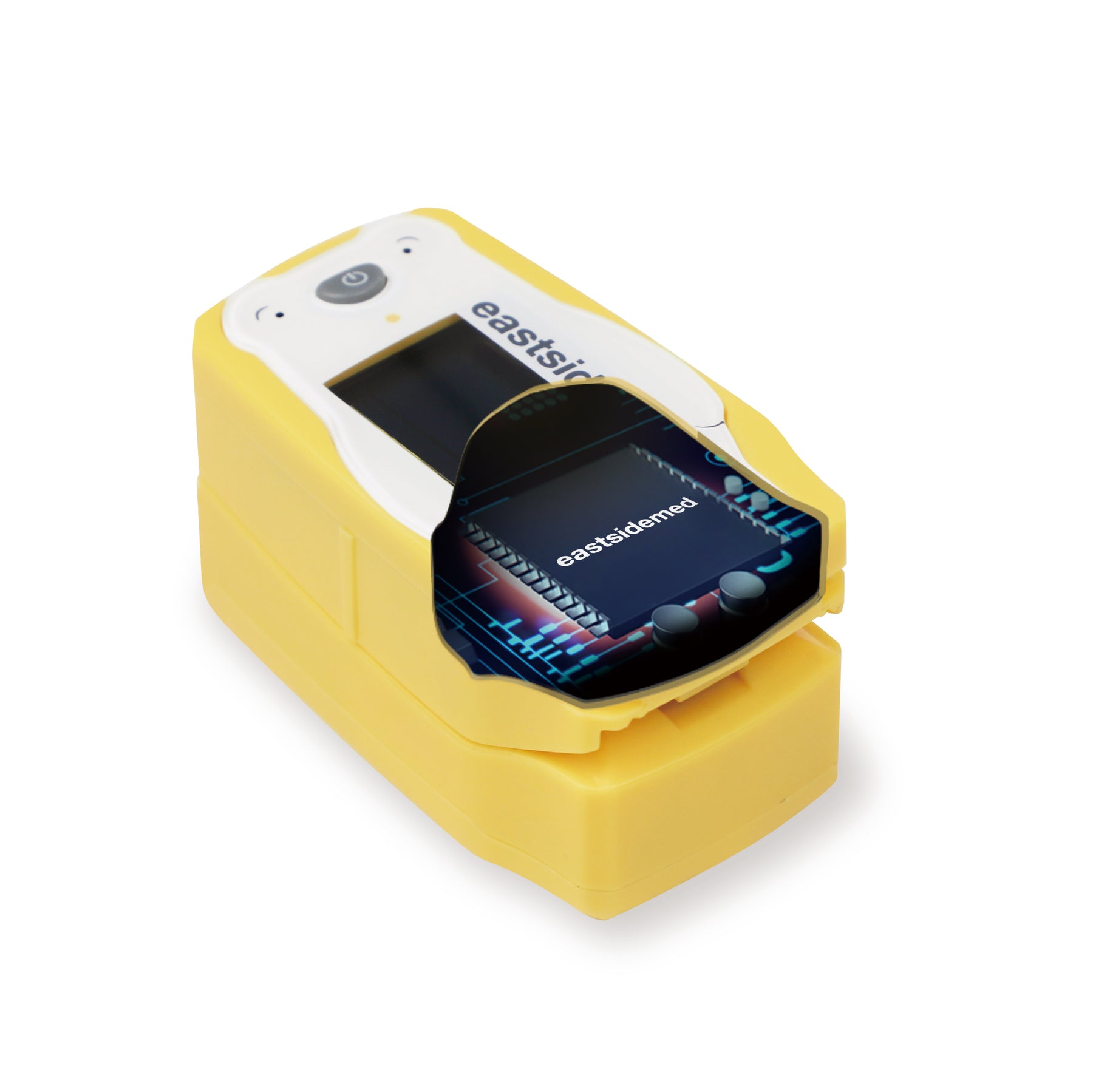

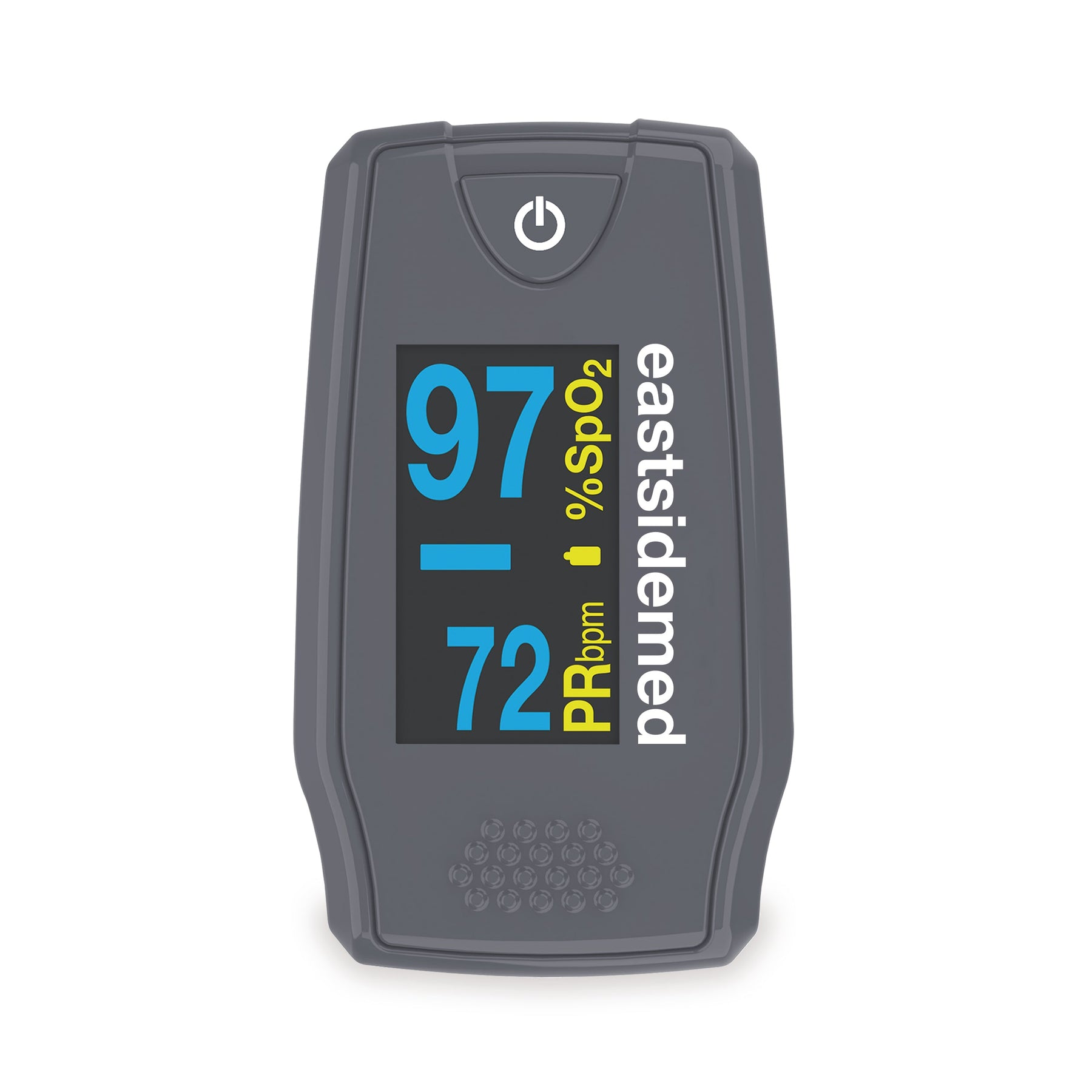

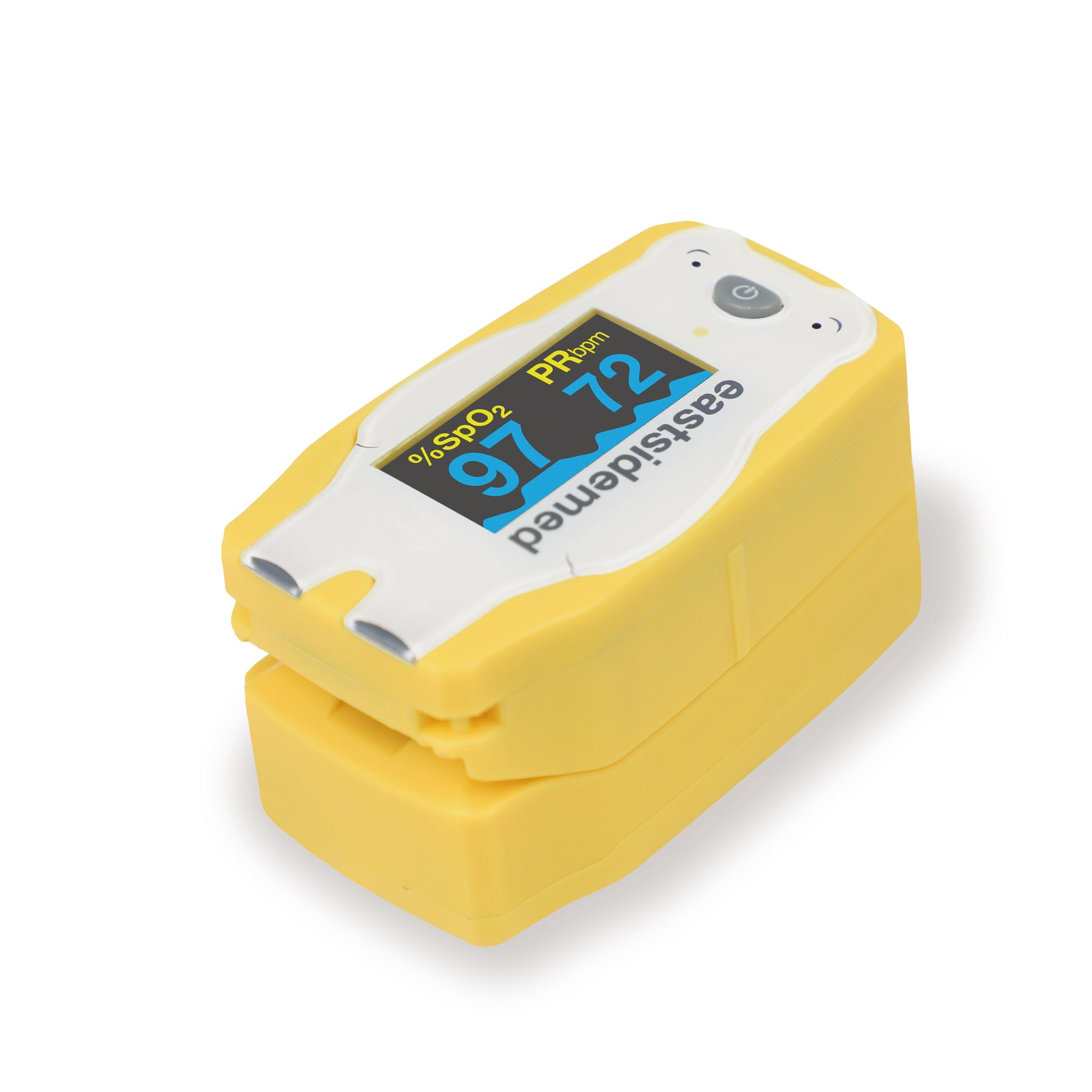

A high-performance pulse oximeter with a PI value display function that can be used by children and people with thin fingers
display

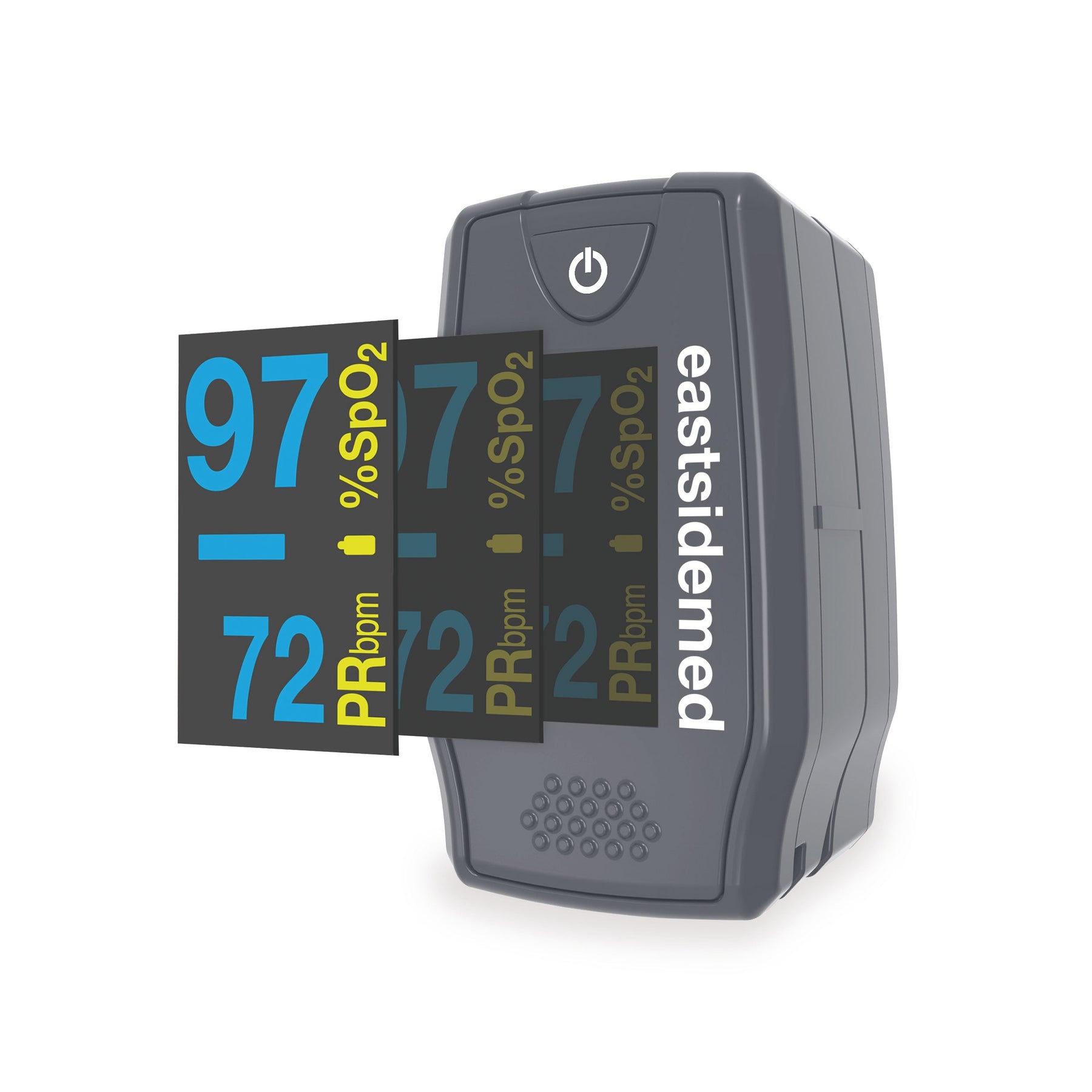

-The OLED display has 10 brightness levels.

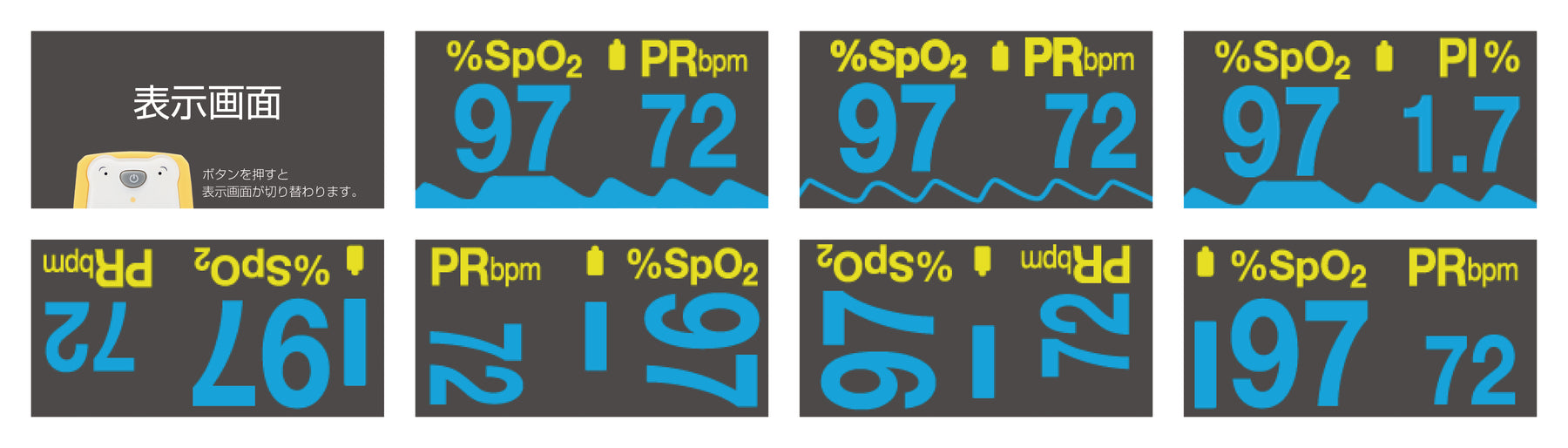

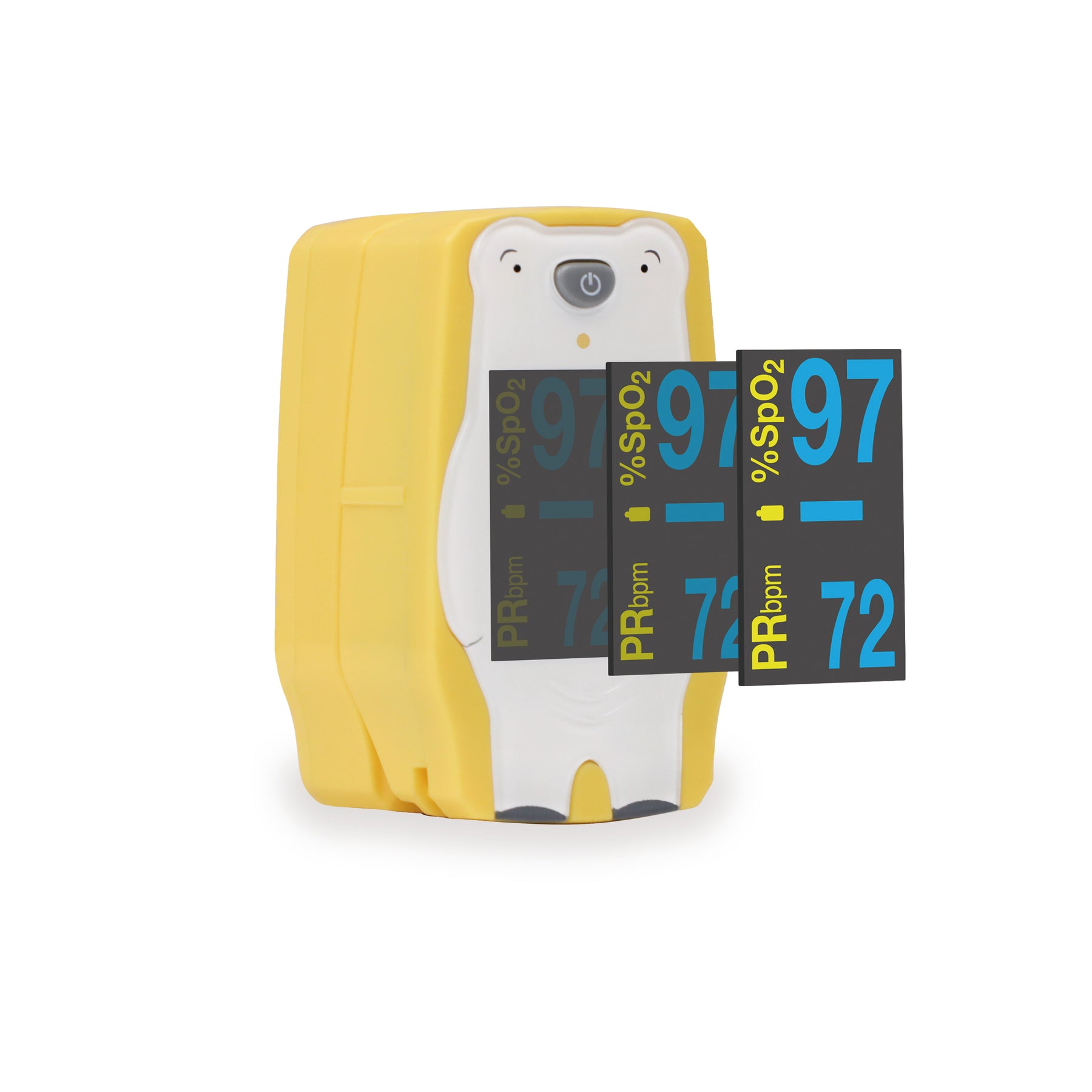

Display screen : 4-way/7-mode switching display that is easy to see from any angle.
Perfusion index (PI value)
・It is an indicator used to judge the state of peripheral blood circulation.
Silicone Cover
- Silicone cover that cushions against shocks from drops.

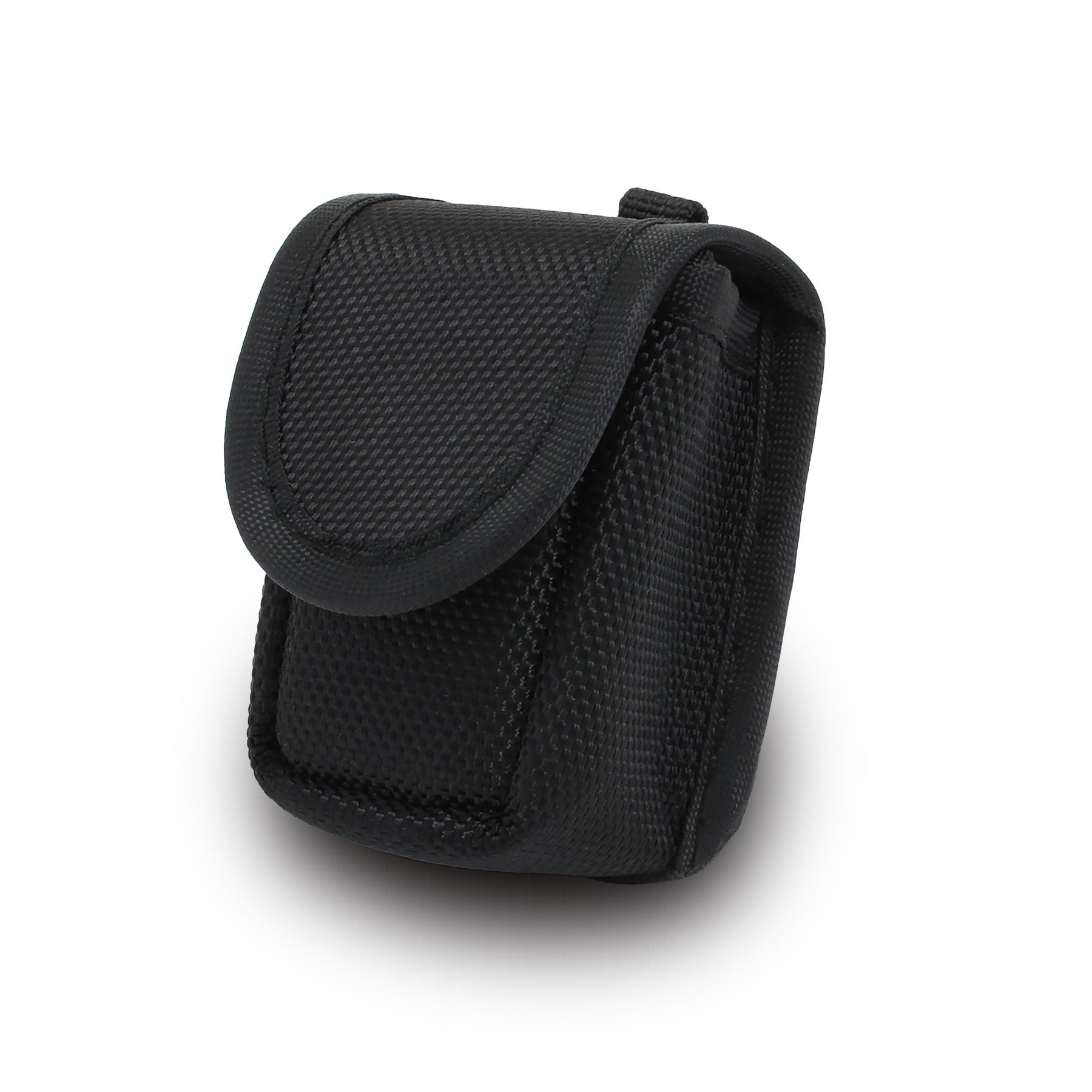

Pouch
- A dedicated pouch that is convenient for storage and carrying.

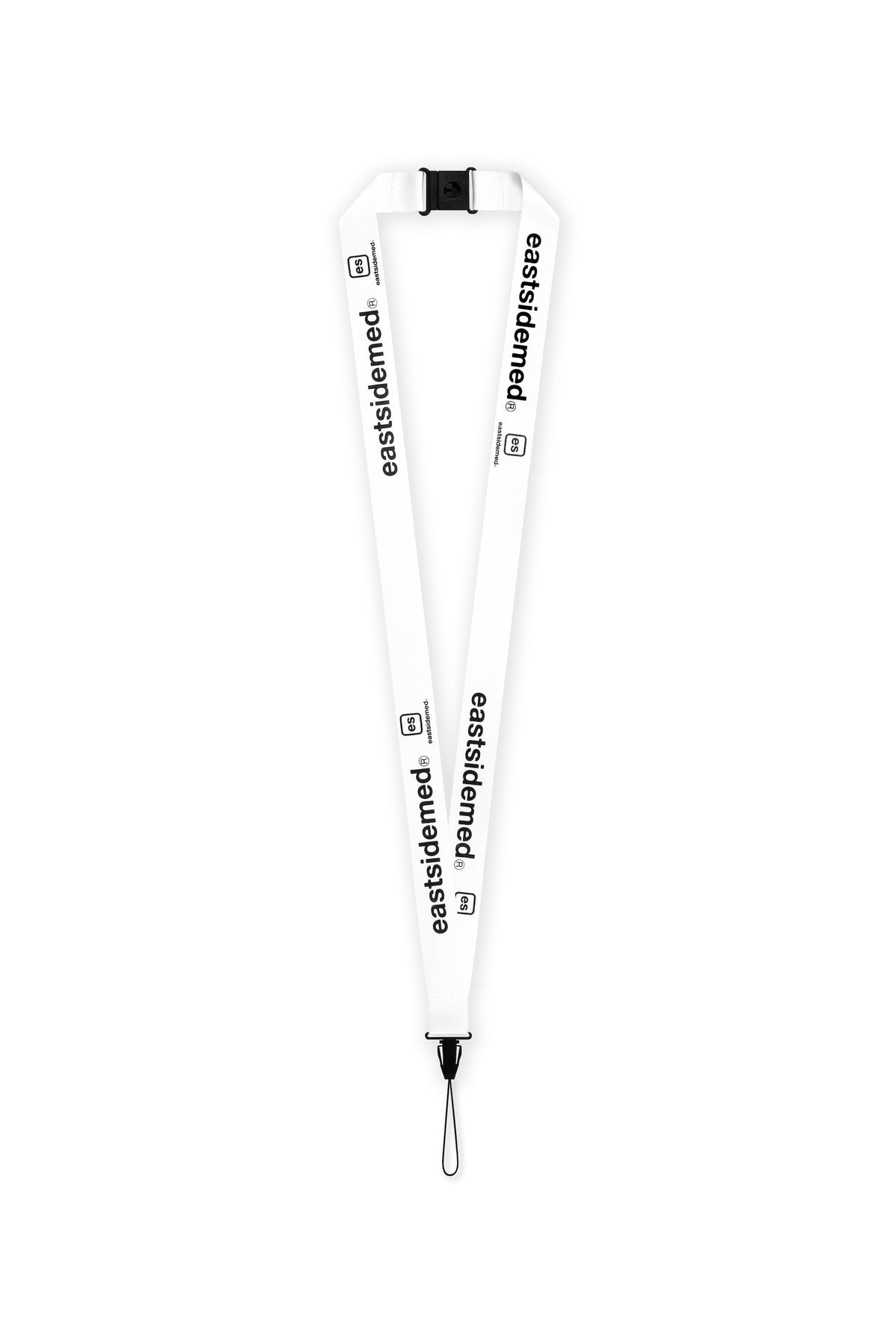

Lanyards
- The fall prevention lanyard can be attached and detached from the main body with one touch. Comes with a "safety part" to prevent strangulation.
Reliable materials
・BPA FREE / LATEX FREE / DEHP FREE
Specifications
Medical device classification: Controlled medical device/special maintenance-required medical device Measurement method: Dual wavelength absorbance measurement method Measurement range: Blood oxygen saturation: 70% ~ 100%, Pulse rate: 30 bpm ~ 250 bpm, Perfusion index: 0.3% ~ 20.0% Display contents: Blood oxygen saturation (SpO2 ), pulse rate (PR), perfusion index (PI), pulse wave waveform display, pulse synchronization display Body size: Width 49 mm x Depth 28 mm x Height 28 mm Weight: 23 g (excluding batteries) Operating environment: Temperature: 5 °C ~ 40 °C, Humidity: 15 % ~ 93 % (no condensation) Suitable size: 6.7 mm ~ 17.5 mm (measurement finger thickness) Power supply: 2 AAA alkaline batteries IP rating: IP22 Accessories: Silicone cover, pouch, lanyard, attached documentation, instruction manual, quality guarantee Medical device certification number: 302AFBZX00124000 Class II <Controlled medical device>
